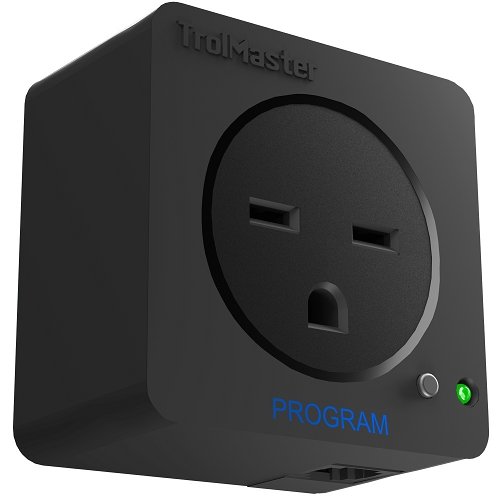

The TrolMaster DSP-2 program device module (timer module) works like a multi-function timer. The DSP-2 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. Any device that is 10-amps at 240 volts or less can be controlled by the DSP-2.
LED status:
• Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
• Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
• SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
• Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
Features:
• LED Power Indicator
• RJ12 Cable Socket
• Addressing
• Plug & Play
