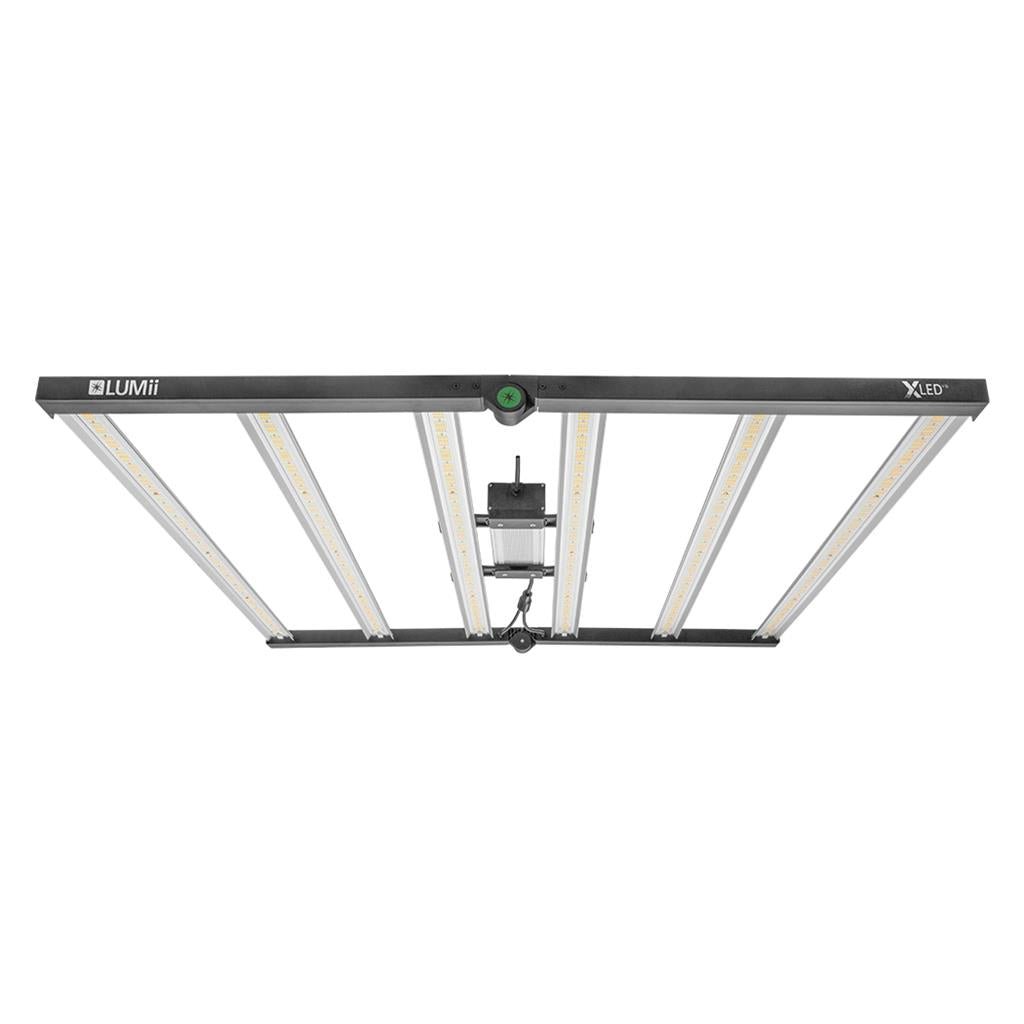

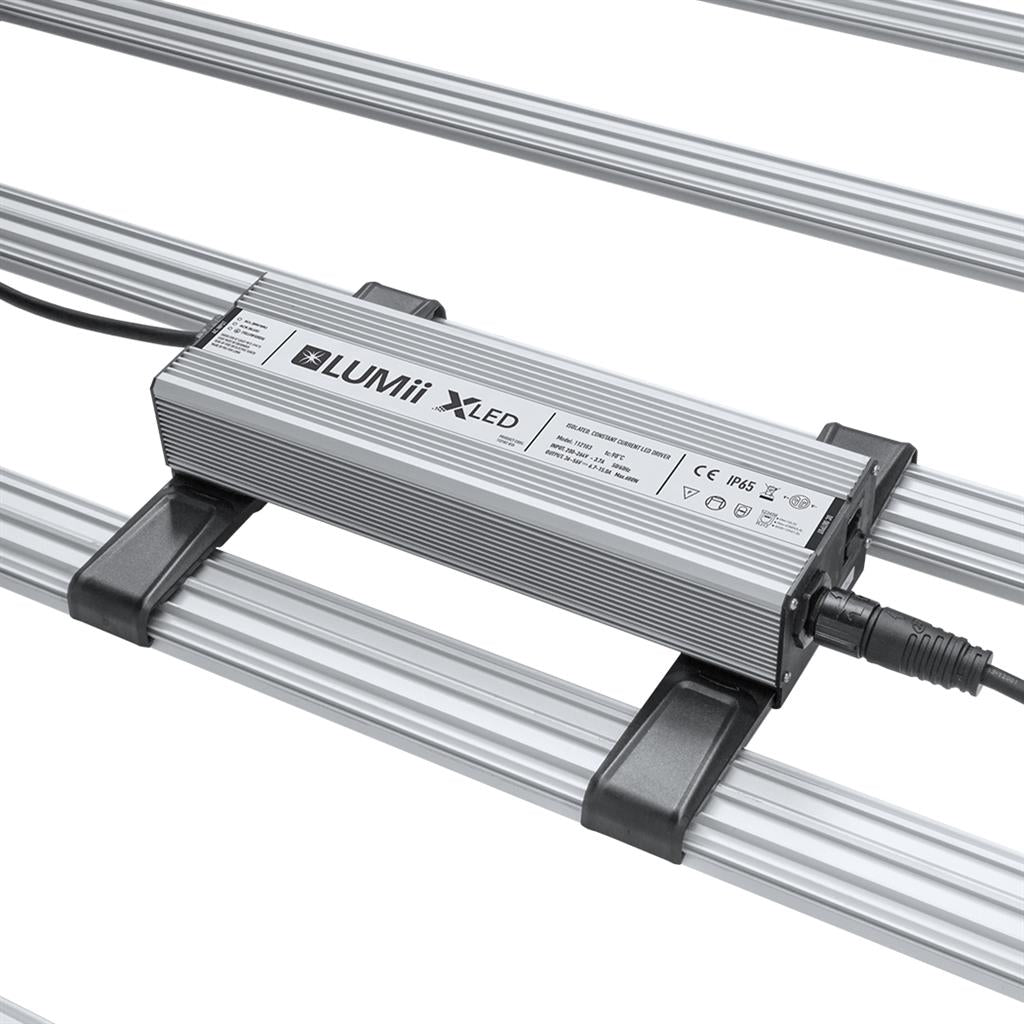

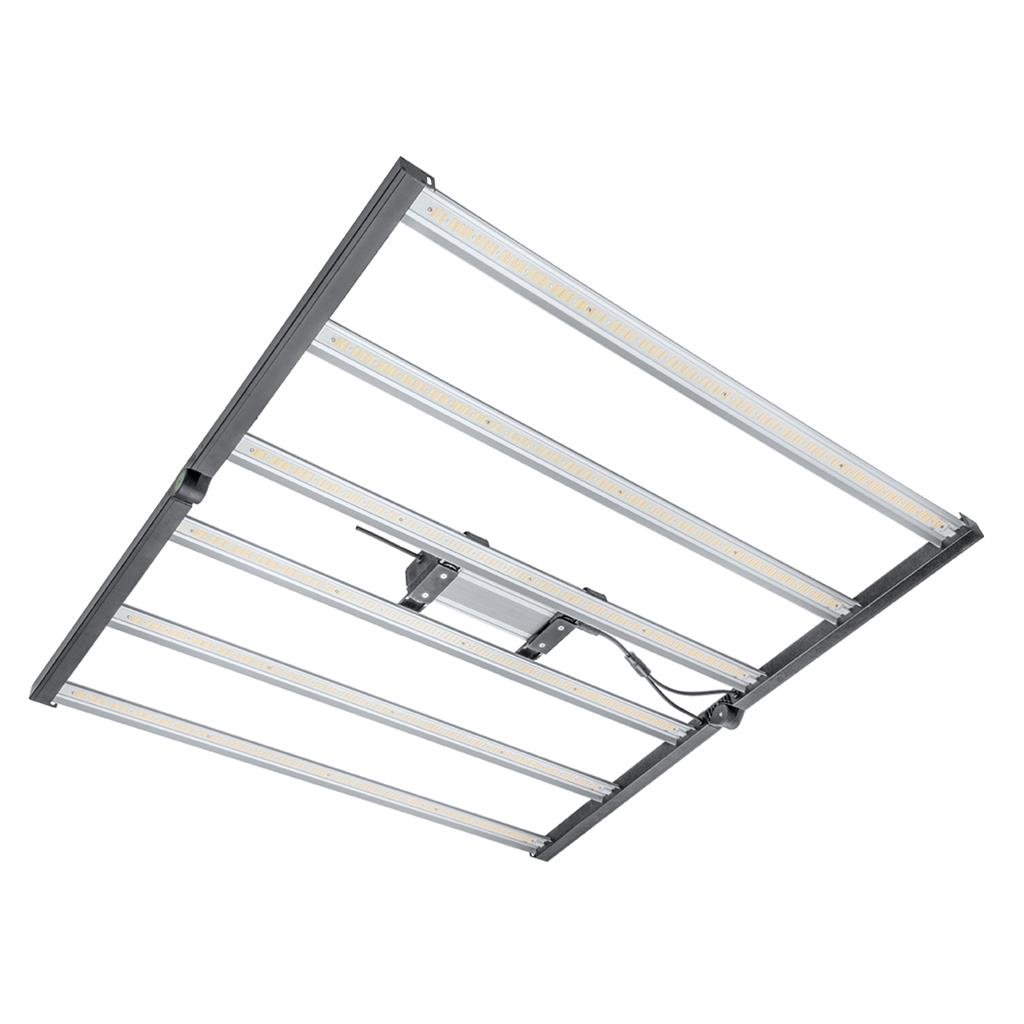

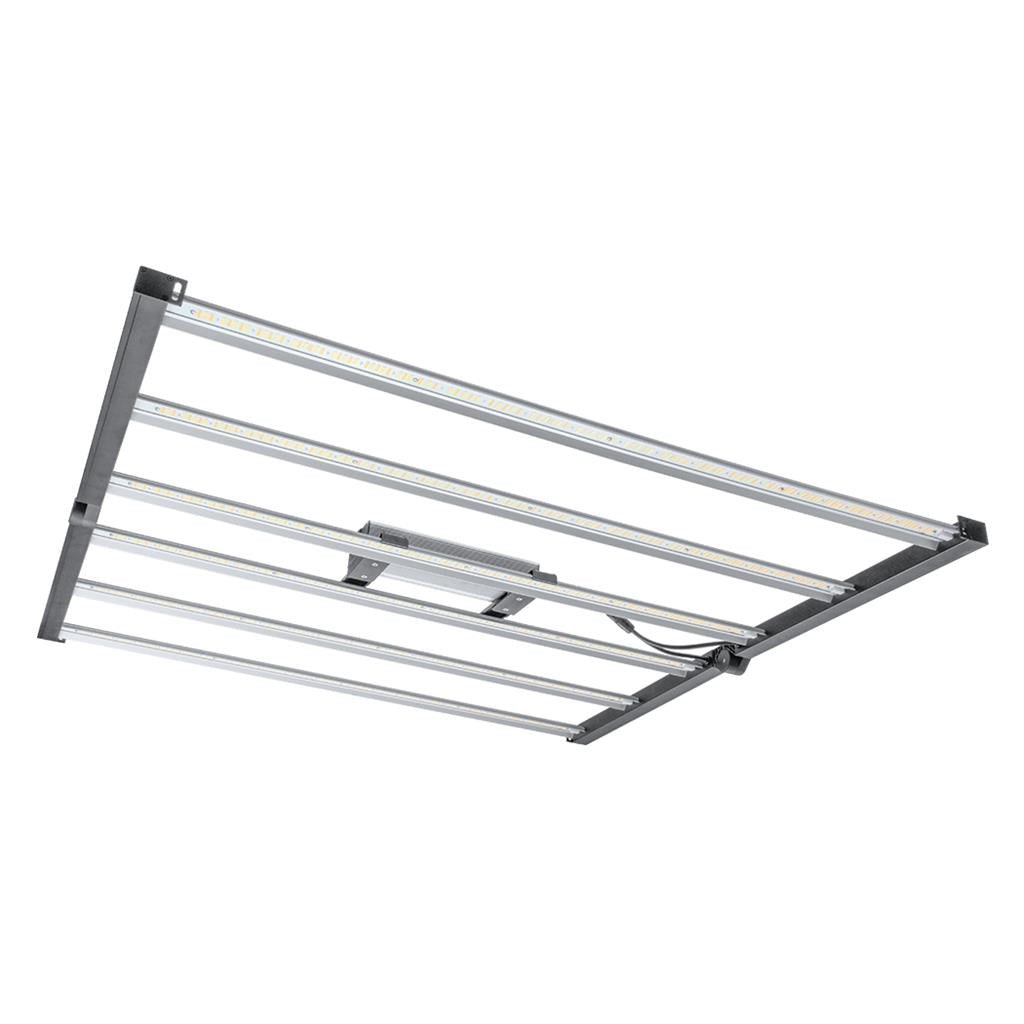

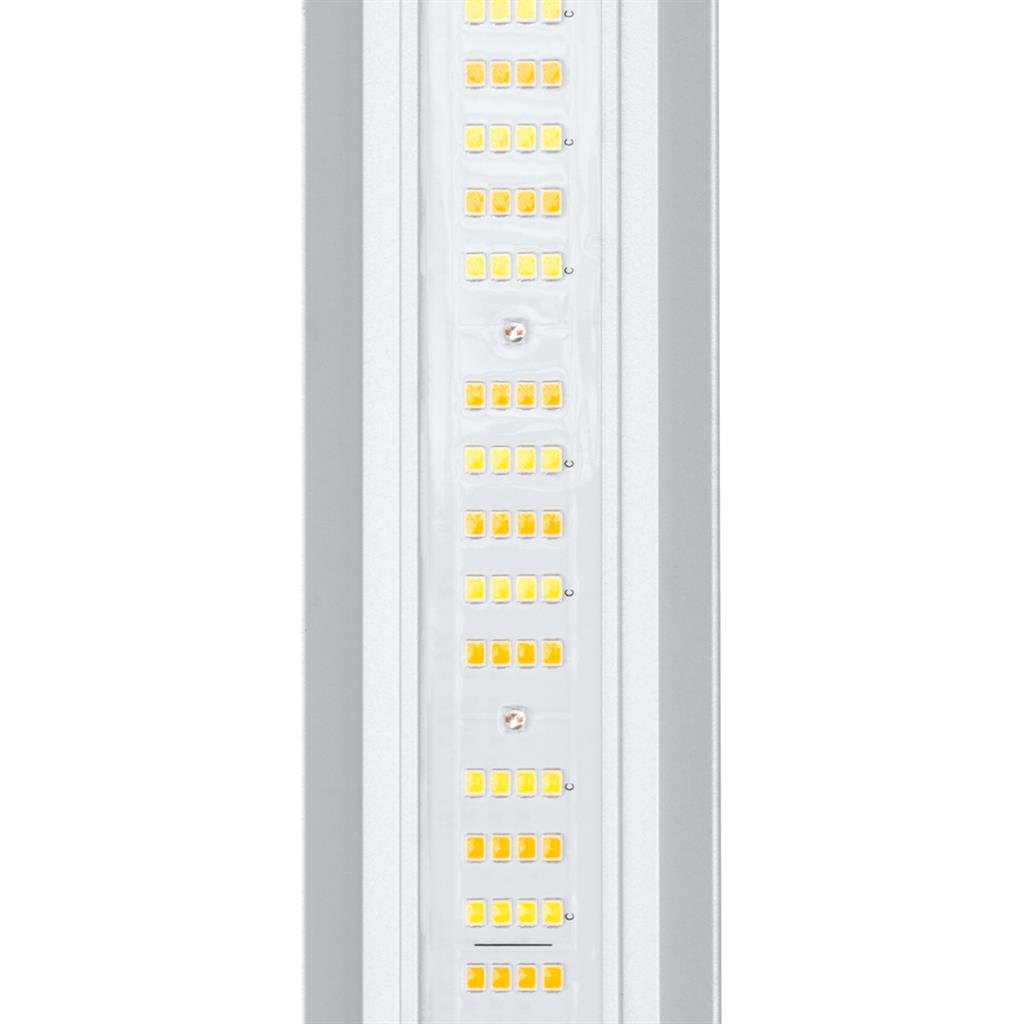

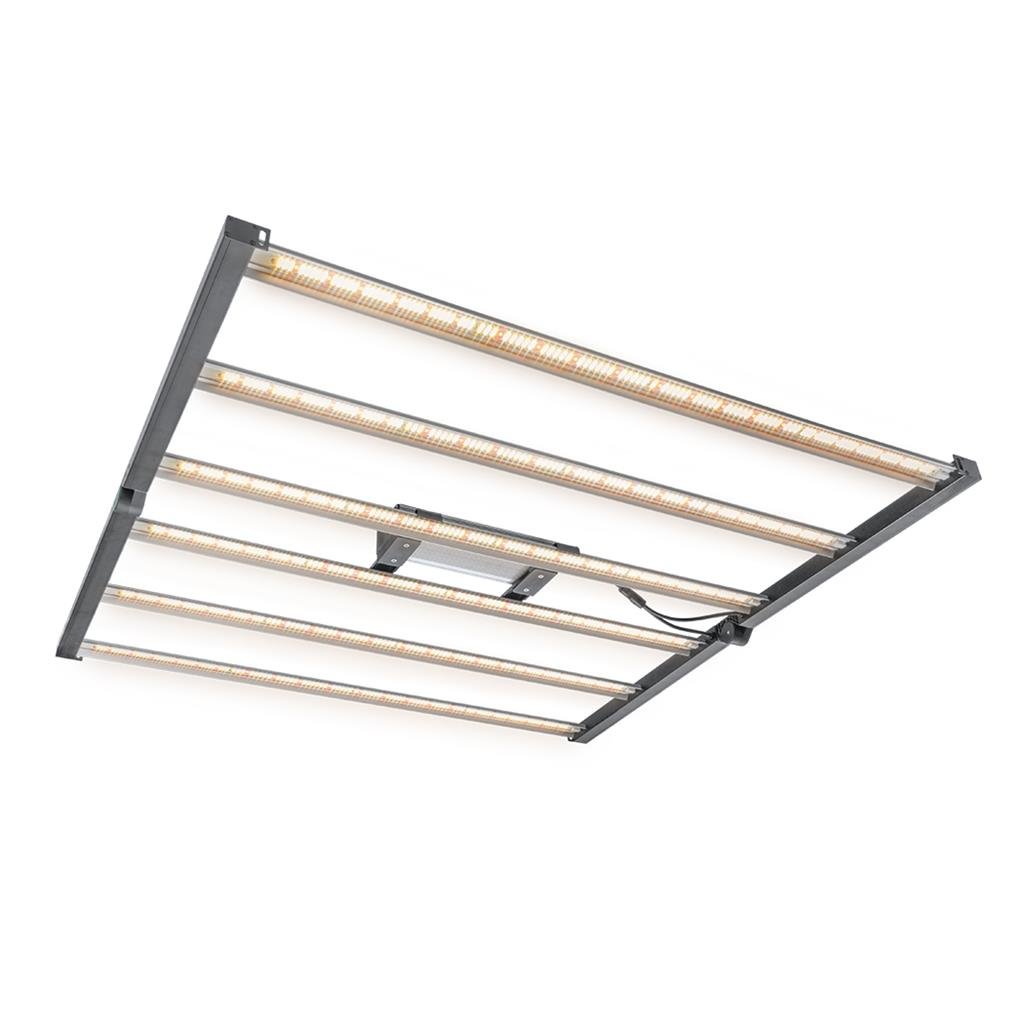

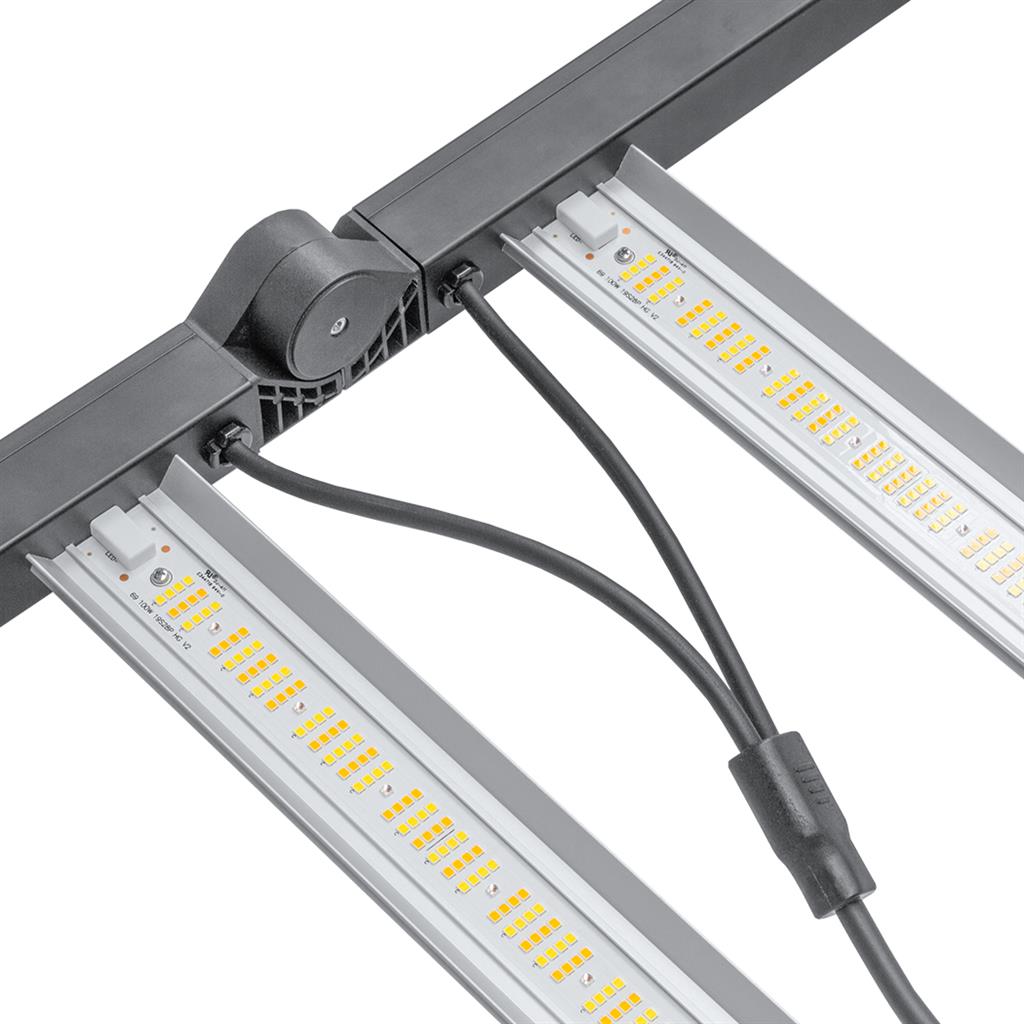

LUMii XLEDv6 680w LED fixture is a high-performing, high-efficiency mid-range 6-bar LED fixture. Lightweight and easy to install. Supplied with a constant current driver which has fold-out brackets enabling it to sit on the upper face of the fixture. The driver has a manual dimming dial and RJ12 ports to allow external 0-10V control, and daisy chain connection of an array of fixtures. On each light bar the LED chips are positioned with greater density near the outer ends of the bar, to give a more even spread of light over the crop. The open construction of the fixture and its very low heat output assist airflow and heat management. Produces full spectrum light ideal for both growth and bloom. Hanging slings and a 3m RJ12 data cable included. Key Feature:
-
Manually dimmable or controllable externally
-
Provision for daisy-chain connection
-
Full spectrum light with more even spread
-
High efficiency
-
Assists heat management
- Lightweight
Specifications:
-
Full spectrum LED
-
Light output PPF – 1870 µmol/s
-
Efficacy - 2.75 µmol/J
-
Manual dimmer settings:
-
40% - 260 W
-
50% - 325 W
-
60% - 390 W
-
80% - 520 W
-
100% - 680 W
-
Maximum Input power to Driver: 680W
-
AC Input voltage: 200 – 264 V, 50/60 Hz
-
Maximum Input Current to Driver: 3.7 A
-
Driver Output voltage to Fixture: 36 – 56 V DC
-
Driver Output Current to Fixture: 6.7 - 15.0 A
-
Lifetime - L90 >50,000Hr
-
IP Rating - IP65
-
Weight (LED fixture only) – 7.8kg
-
Overall size in use – 108 cm x 108 cm x 10 cm (including driver)
Controller

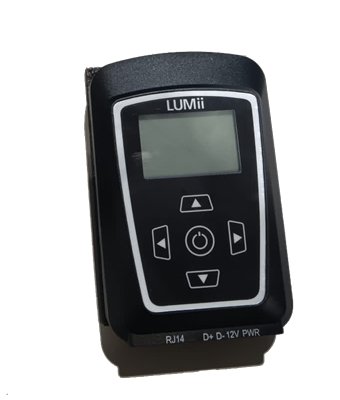

The LUMii XLED Controller is designed to control the LUMii XLEDv6 680w LED fixture but can control any LED fixture which accepts 0-10V control signal. When connected to an RJ12 port, (or by wired connection to push-in terminals) it will schedule a desired daily photoperiod, control the light intensity (dimming) from 0% to 100%, and set the length of sunrise and sunset ramping. With its single channel, it will control a linked array of up to 25 LUMii XLEDv6 680w LED fixtures. The controller uses a very simple five-button control interface with LED display. It has an integral wall mounting / hanging tab and is powered from mains electricity via an adaptor plug (supplied).
Key Features:
-
Controls any LED fixture accepting 0-10V signal
-
Sets photoperiod, dimming, sunrise and sunset ramping.
-
Simple 5-button controls
-
Mains adaptor plug supplied
Specifications:
-
Number of Channels: 1
-
Signal Type: 0 – 10 V
-
Maximum Number of Fixtures Controlled: 25
-
10 V Output Control: 0 – 10 V ± 0.1 V
-
Adaptor AC Input Power: 120 – 240 V
-
Controller DC Input Power: 12 V, 1.0A
-
Operating temperature: 0°C - 35°C (32°F - 95°F)
-
Operating Humidity: 80% RH Maximum, non-condensing
-
IP Rating: IP20
