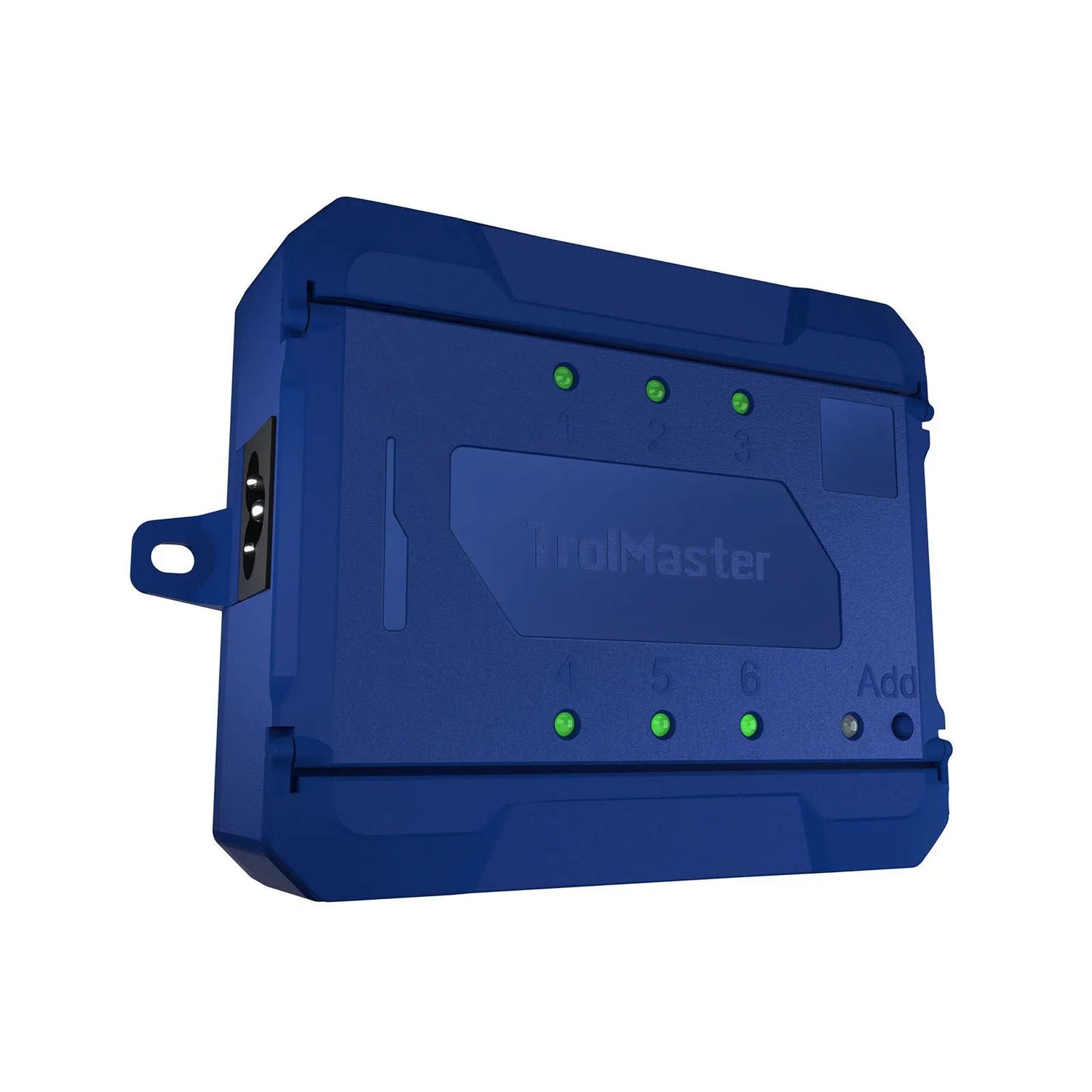

Control Board OA6-24

The OA6-24 Control Board is Designed to Control Multiple 24vac Solenoid Valves.

It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

• Input Voltage: 110-240 VAC
• Max Input Current: 0.42A
• Max Output Voltage/Current: 24VAC/0.15A per output
• Working Environments: Temperature 32°-122°F, Humidity=90%
• Packaging Dimensions: 275mm(L) x 164mm(W) x 40mm(H)
